How do we know if a wheel is compatible on our vehicle?

Several elements define whether a wheel is compatible with our vehicle.

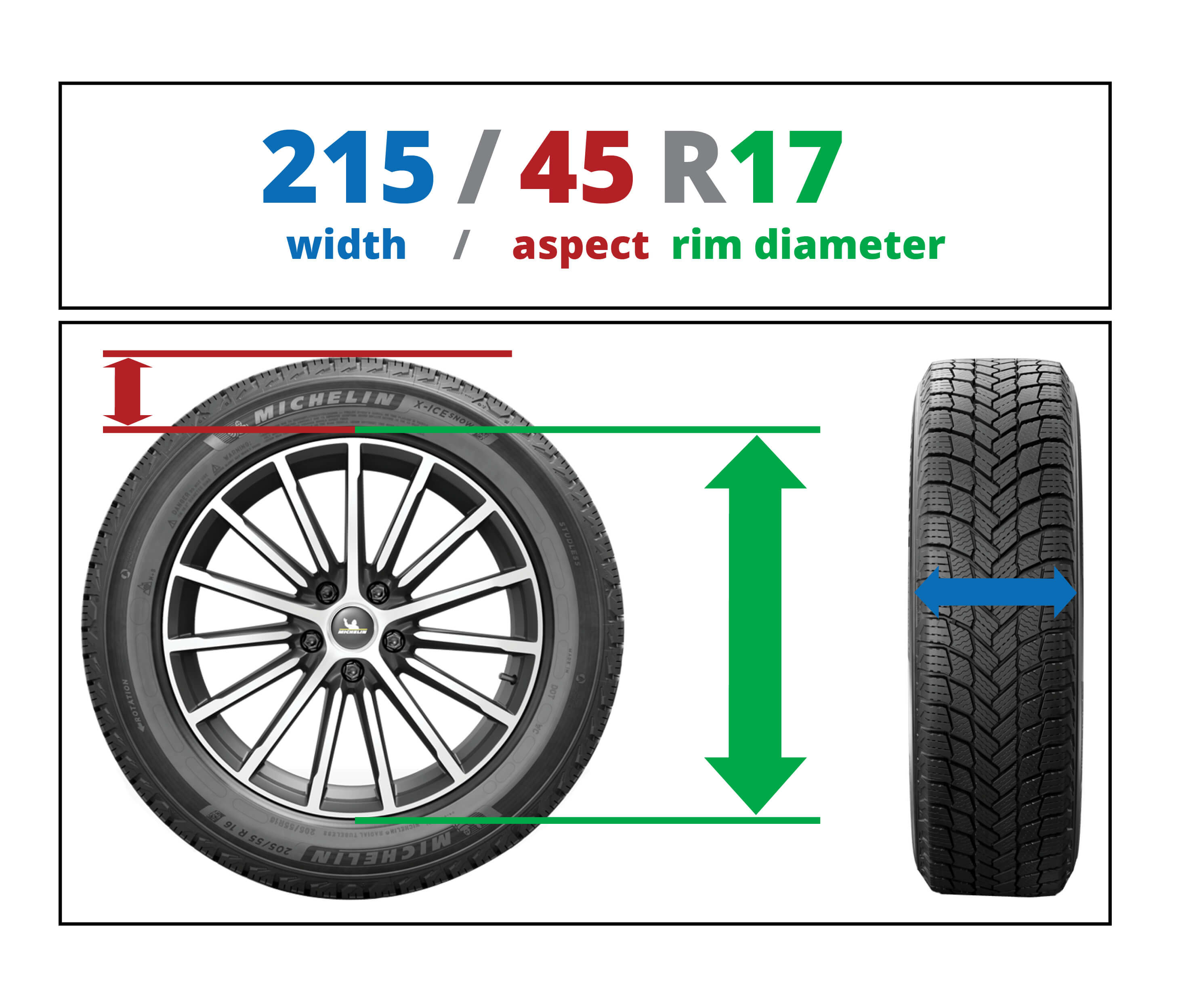

Diameter

This one must be identical to the one of the tire that we install (example, 215/50R17, 17 is the diameter).

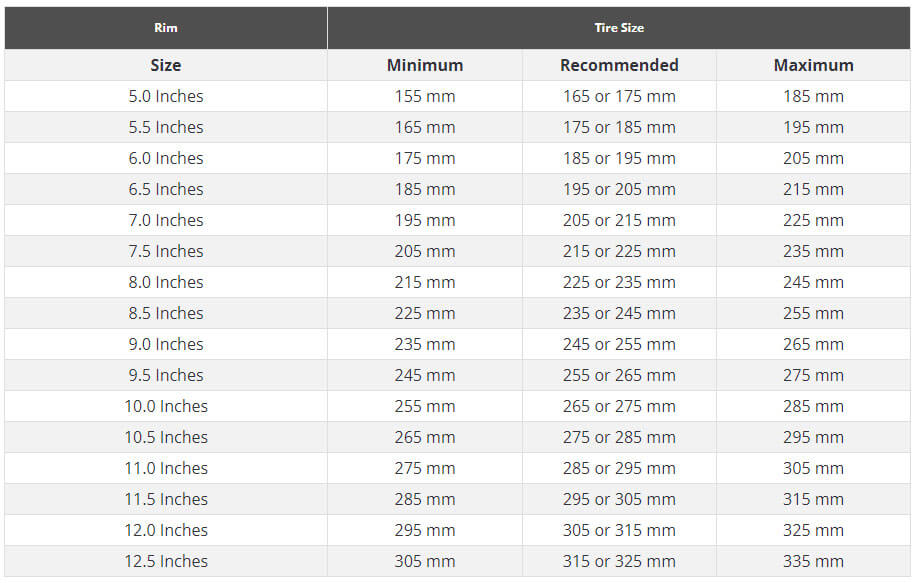

Width

It must be within the tolerances of the tire.

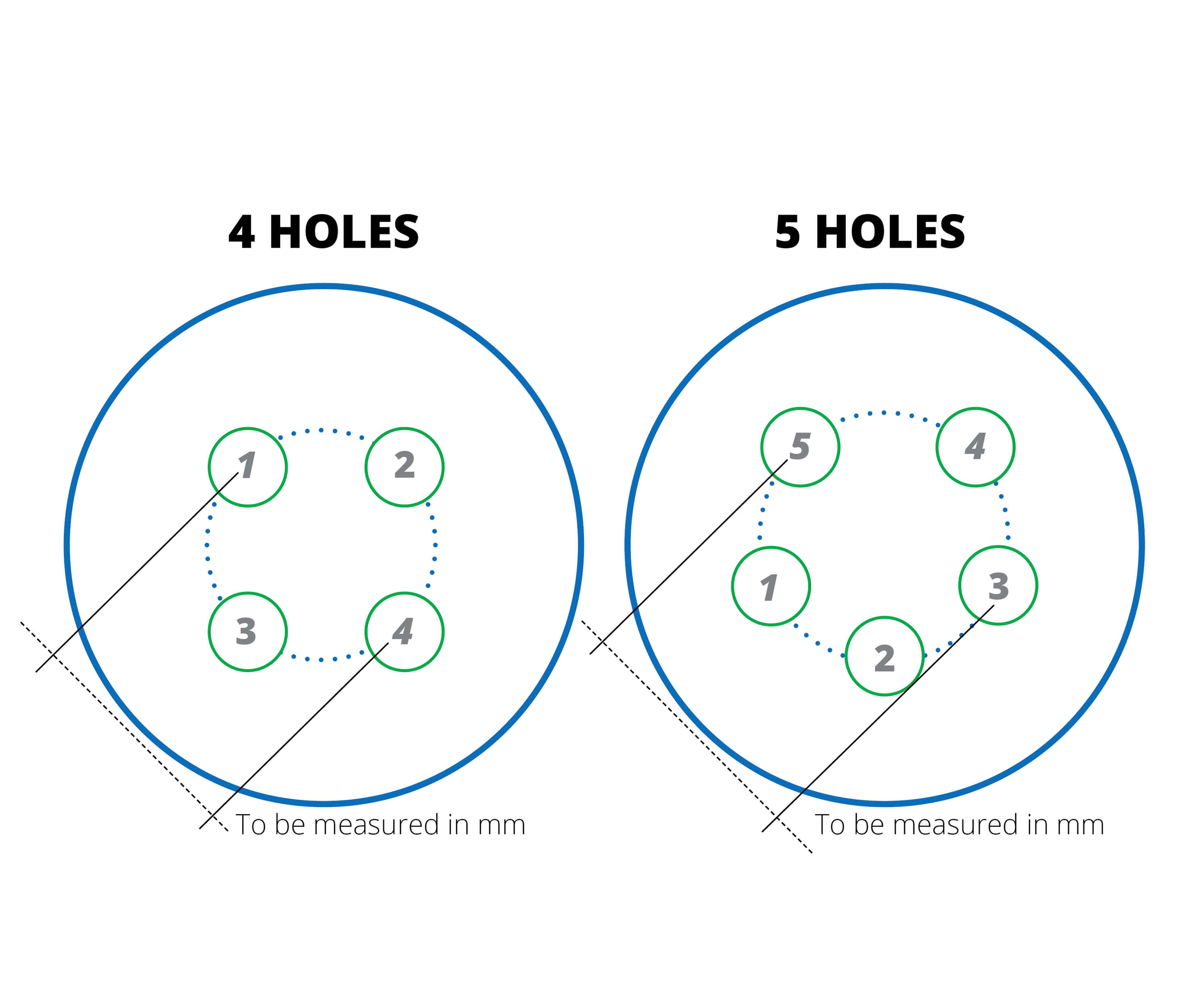

Bolt pattern

This is the disposition of bolt holes on the wheel. Two elements compose it, the number of holes and the diameter in the center of the holes

(ex.: 5x120mm).

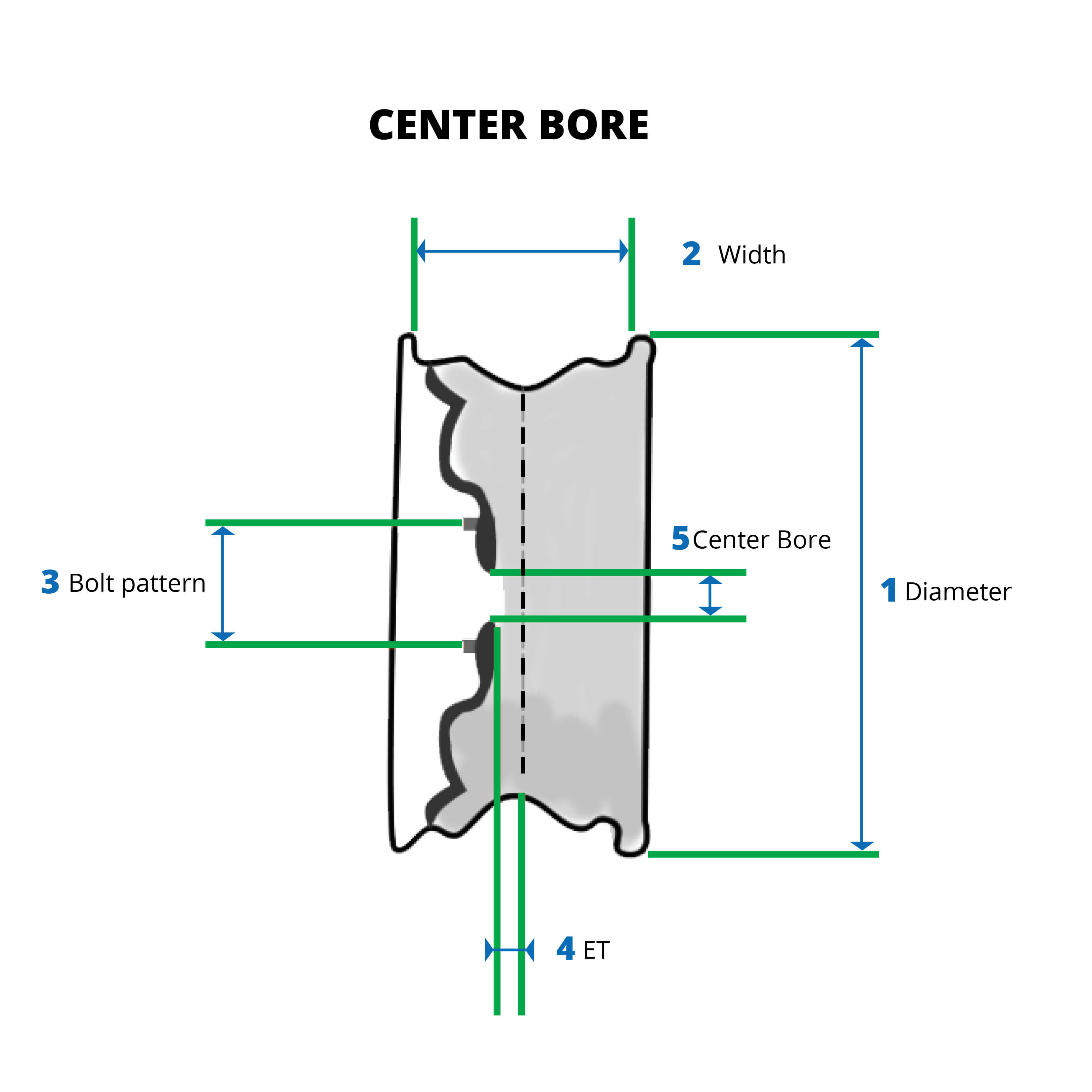

Center bore

This is the hole in the middle, it must be equal or larger than the hub of the vehicle. In case the hole is bigger, a centering ring is needed

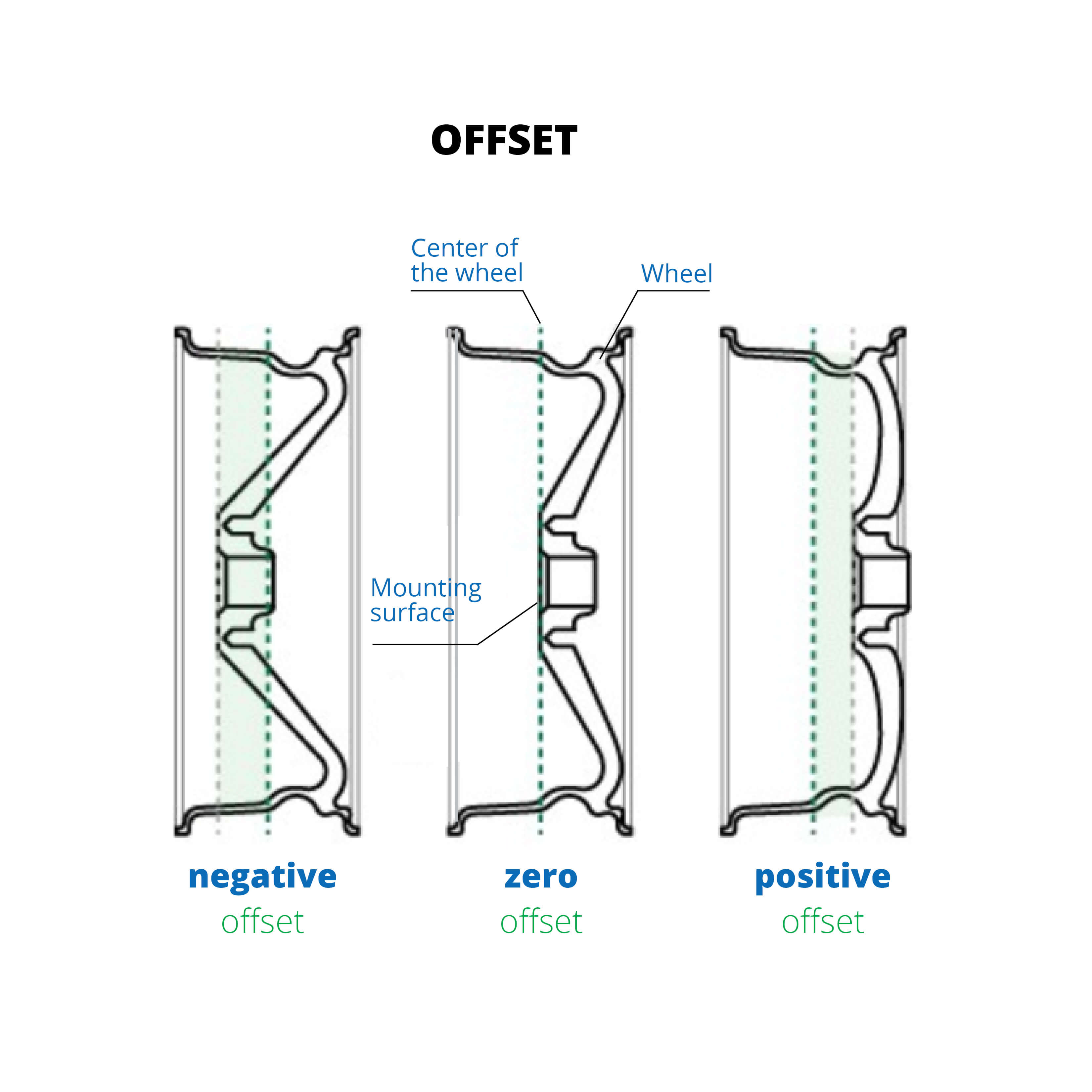

Offset

Last element, the offset of the rim. This is the distance where the mounting surface is located in relation to the center of the wheel (for example, negative or positive).
